Description

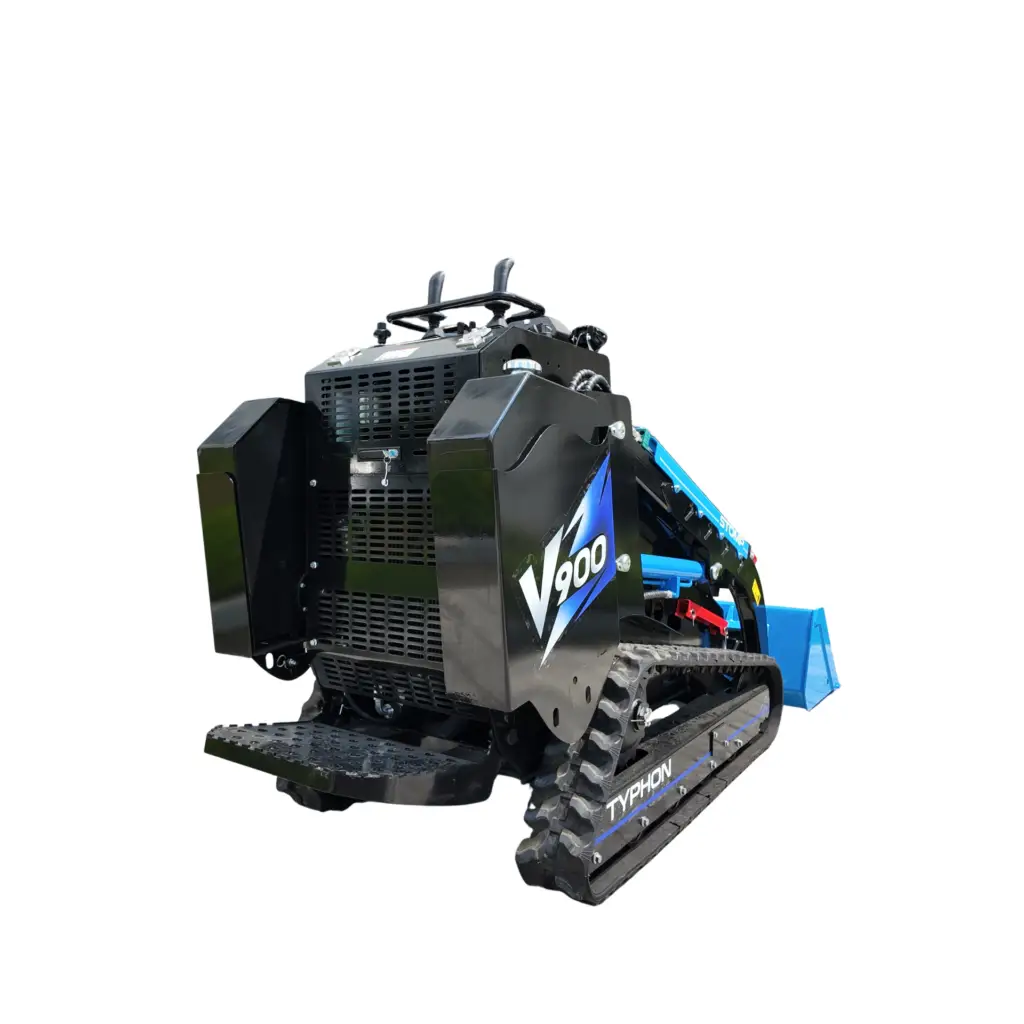

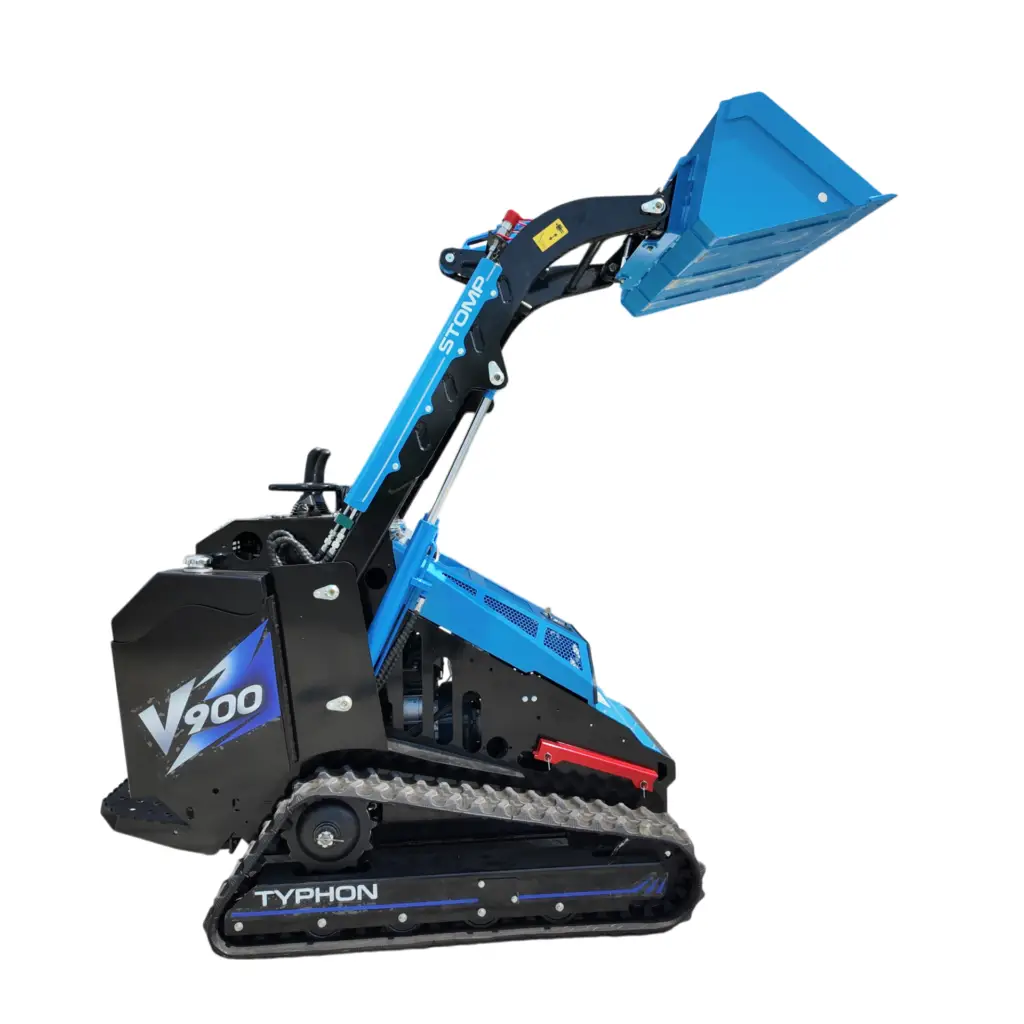

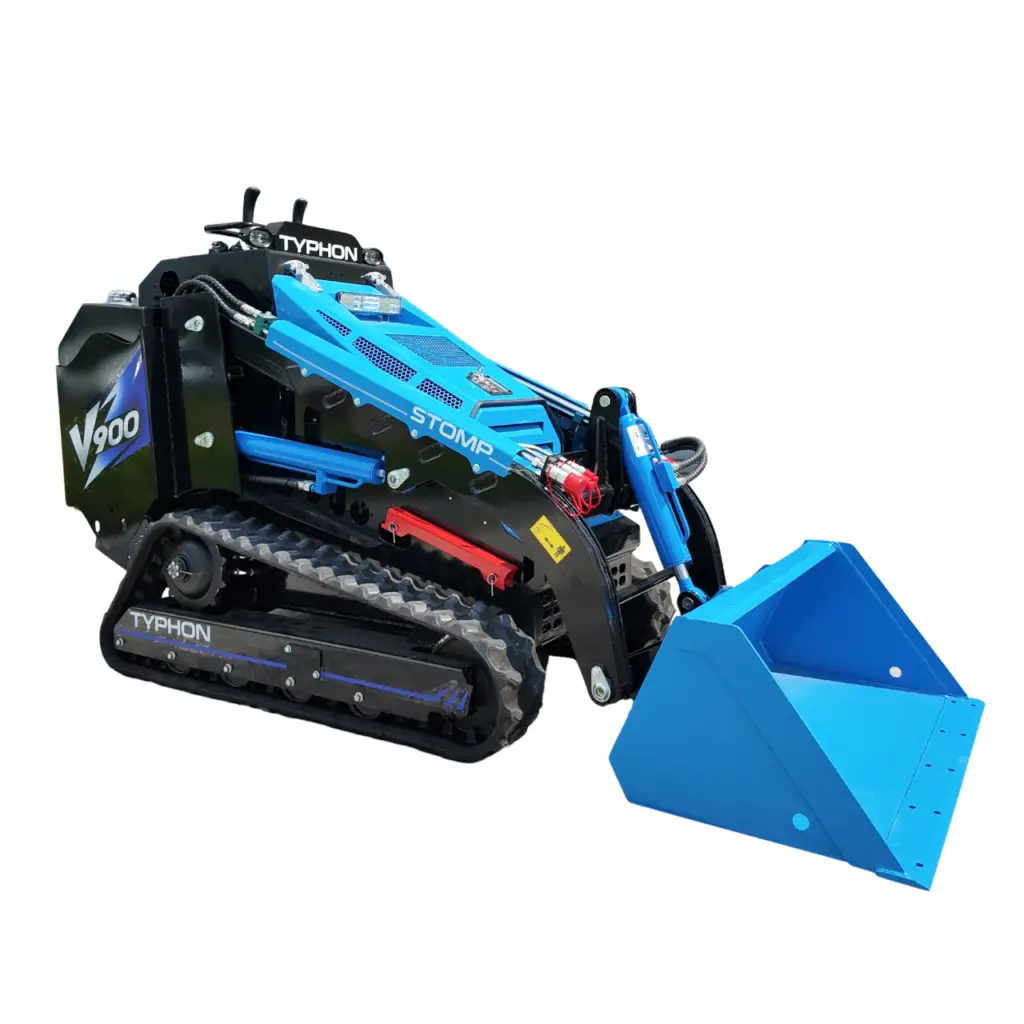

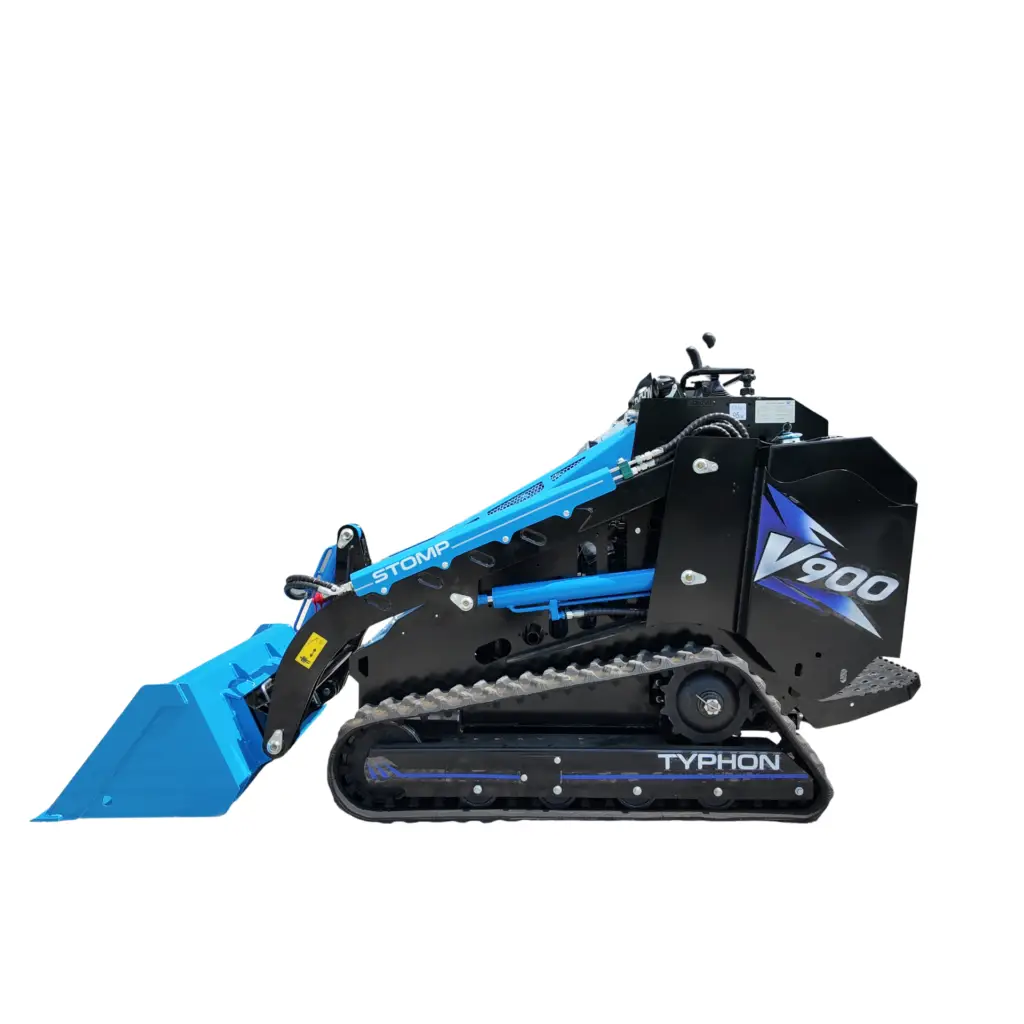

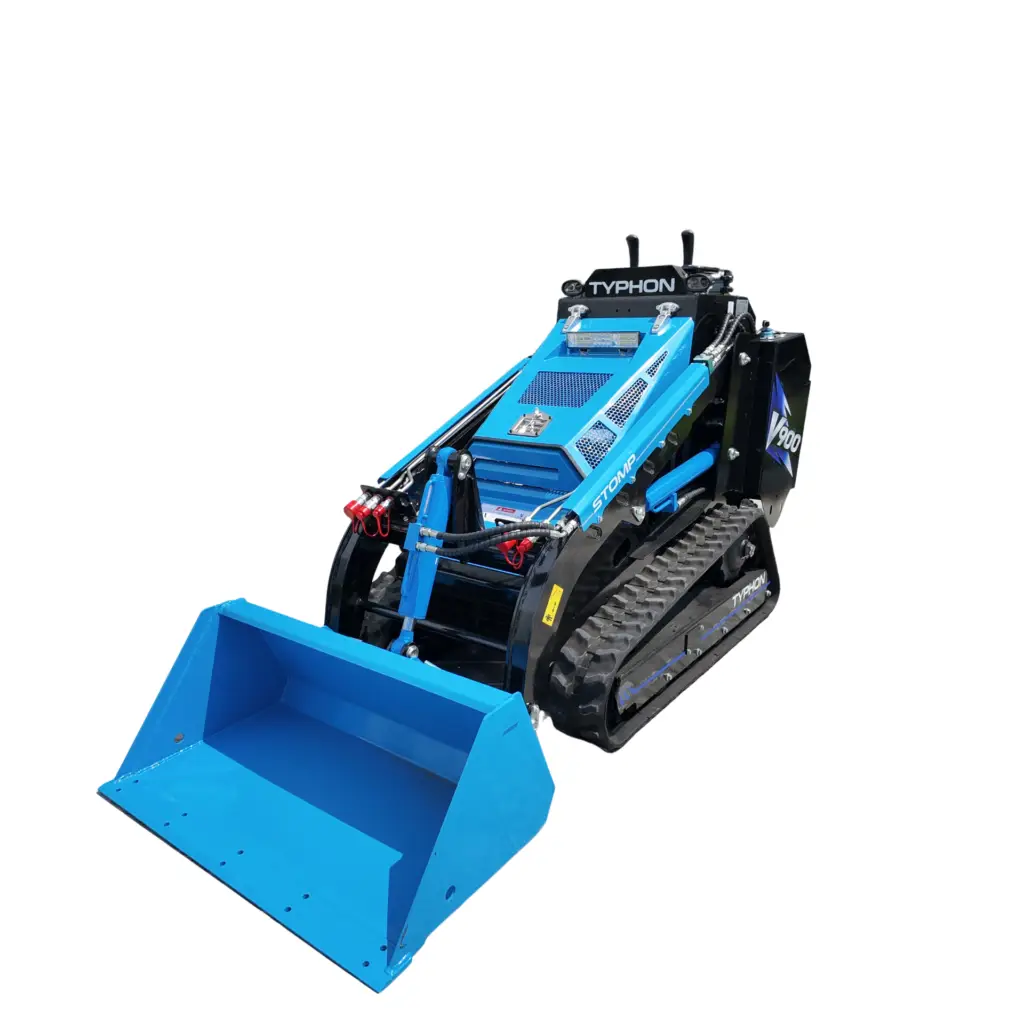

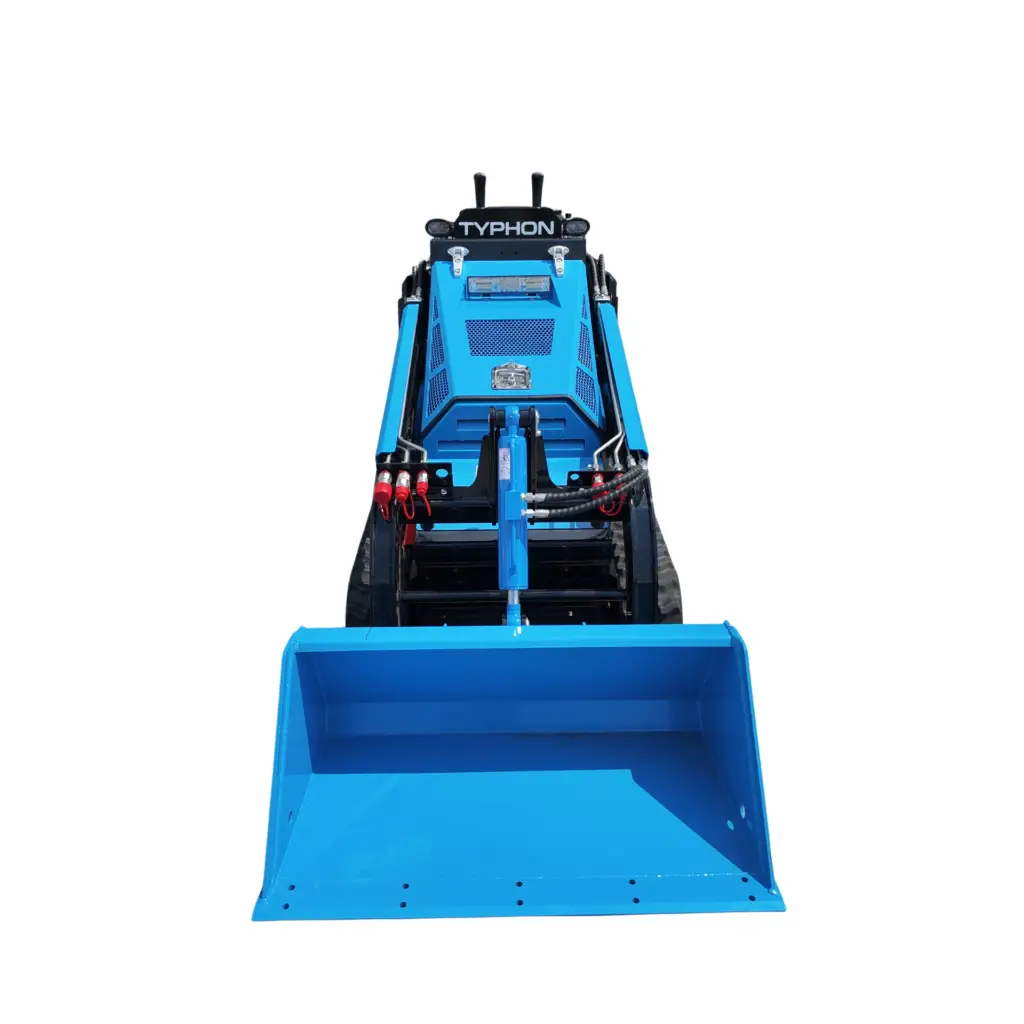

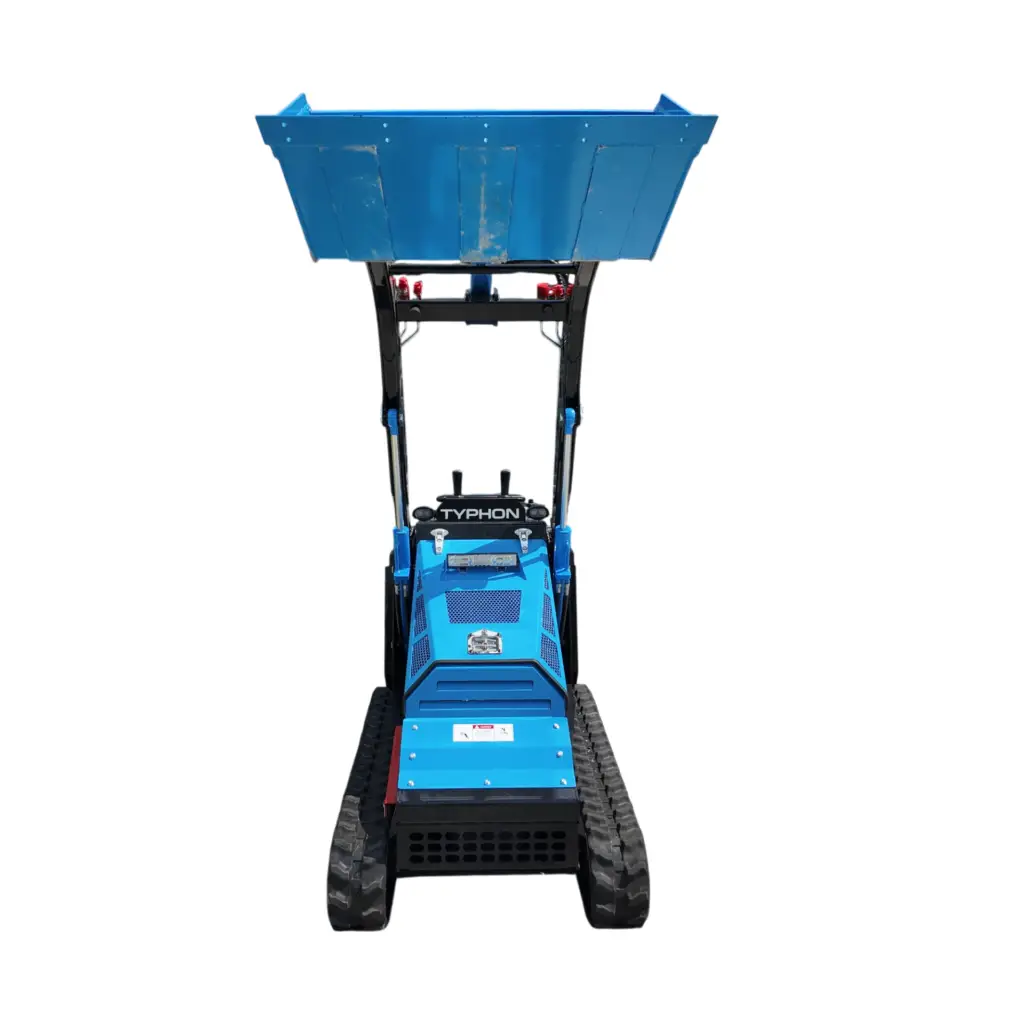

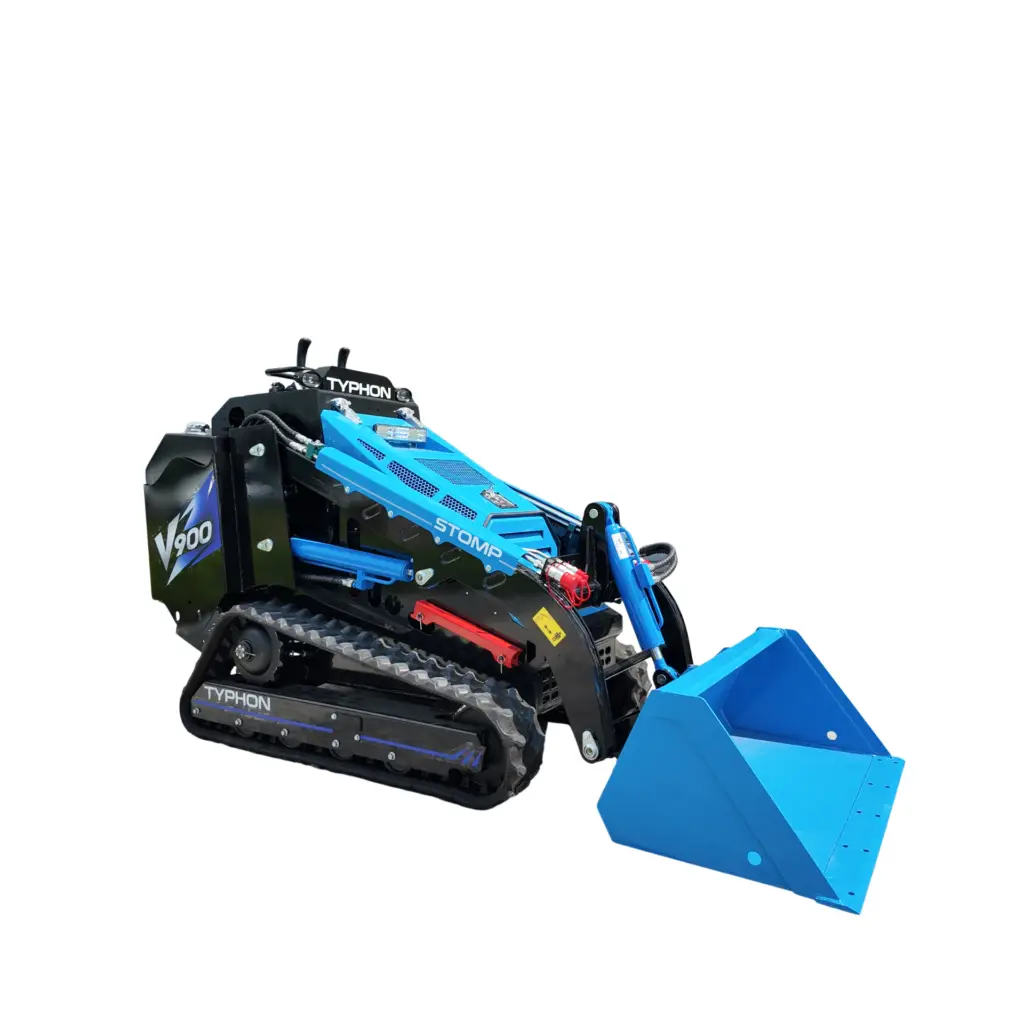

The TYPHON STOMP V900 is a professional-grade 1.4-ton mini track loader designed to deliver commercial-grade capability where full-size equipment cannot easily operate. At only 35.9 inches (911 mm) wide, it can access narrow gates, residential properties, interior work areas, farms, landscaping sites, and other confined job locations.

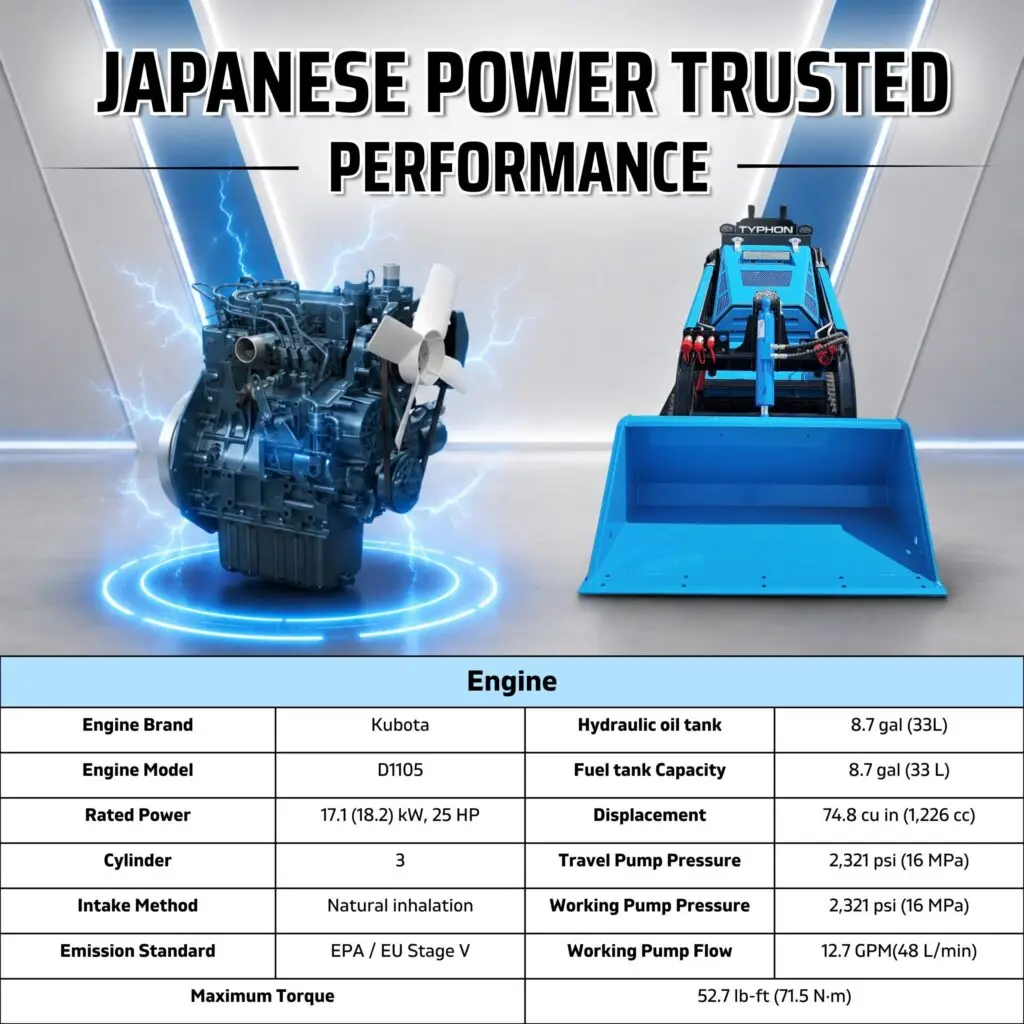

Power comes from the Kubota D1105 25HP three-cylinder water-cooled diesel engine, with 1,226 cc displacement and 71.5 N·m maximum torque. The 33 L (8.7 gal) fuel tank supports extended working periods with fewer refueling stops.

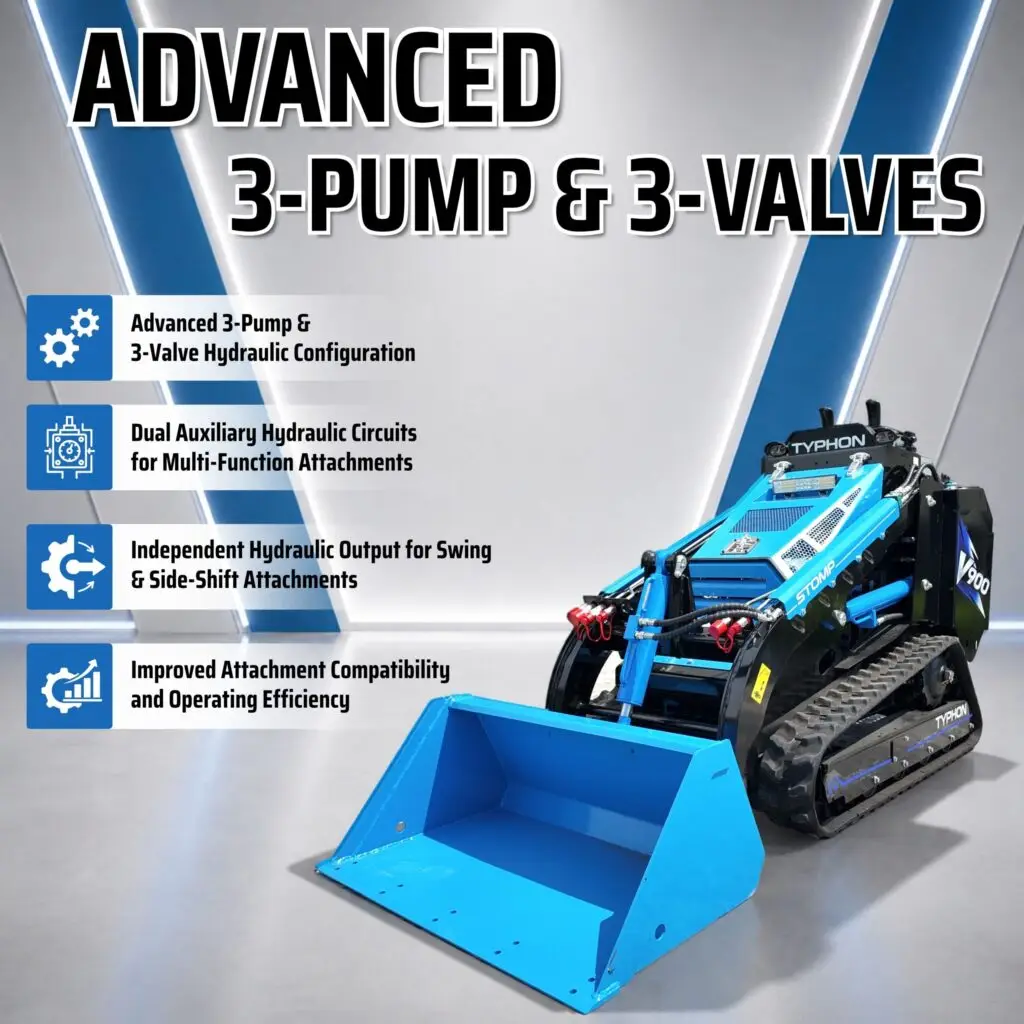

The V900 uses a 3-pump / 3-valve hydraulic system delivering 48 L/min (12.7 GPM) at a rated pressure of 16 MPa (2,321 PSI). The dual auxiliary hydraulic output system supports multi-function hydraulic attachments that require independent hydraulic circuits. Quick-connect couplers, independent hydraulic oil cooling, and protected hose routing improve attachment versatility and durability.

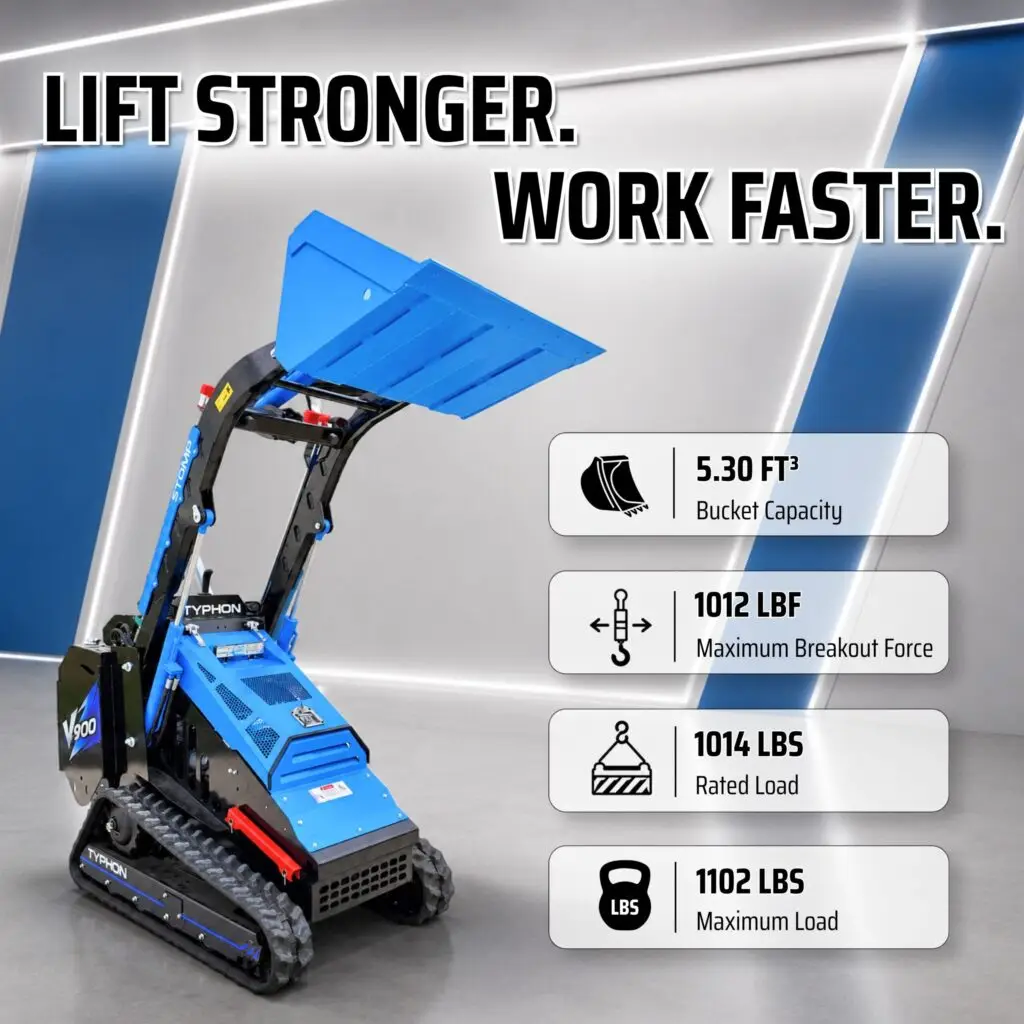

With a 1,014 lb (460 kg) rated operating capacity and 1,102 lb (500 kg) maximum load capacity, the V900 provides strong lifting performance for its compact footprint. Maximum operating height is 9.4 ft (2,873 mm), while dumping height is 5.6 ft (1,704 mm).

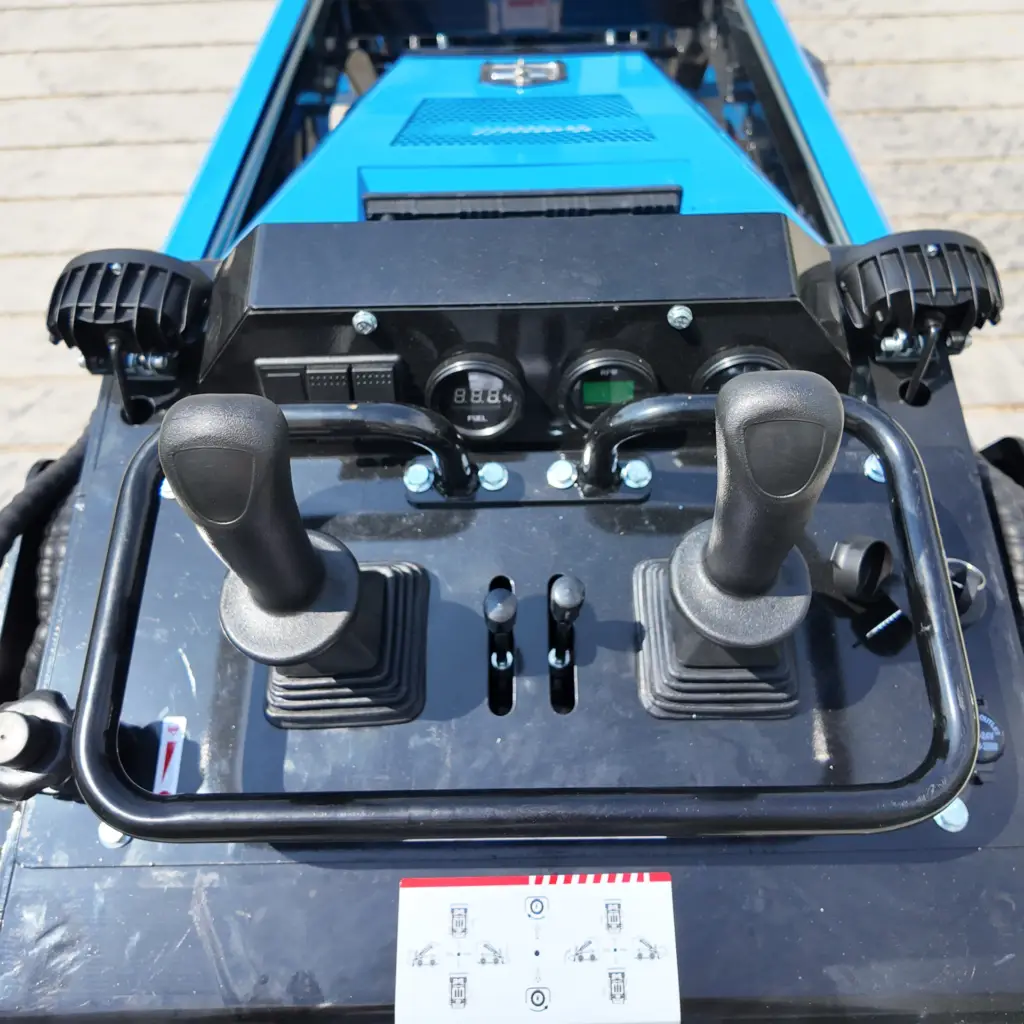

The triangular track system provides traction, flotation, and stability over soft soil, mud, gravel, and uneven terrain. The stand-on platform features ergonomic dual joystick controls, a digital dashboard, fish-eye anti-slip pedals, protective side safety guards, and three-point LED lighting with dual work lights and a front LED light bar.
The machine also features a reinforced hydraulic cylinder mount, internally structured rectangular boom tube with low-weld design, T-style locking system, high-strength hinges, simple key start, and easy-access service points for practical maintenance.
EPA / EU Stage V emissions compliance makes the V900 suitable for contractors, municipalities, rental fleets, agricultural operations, and other environmentally regulated job sites.

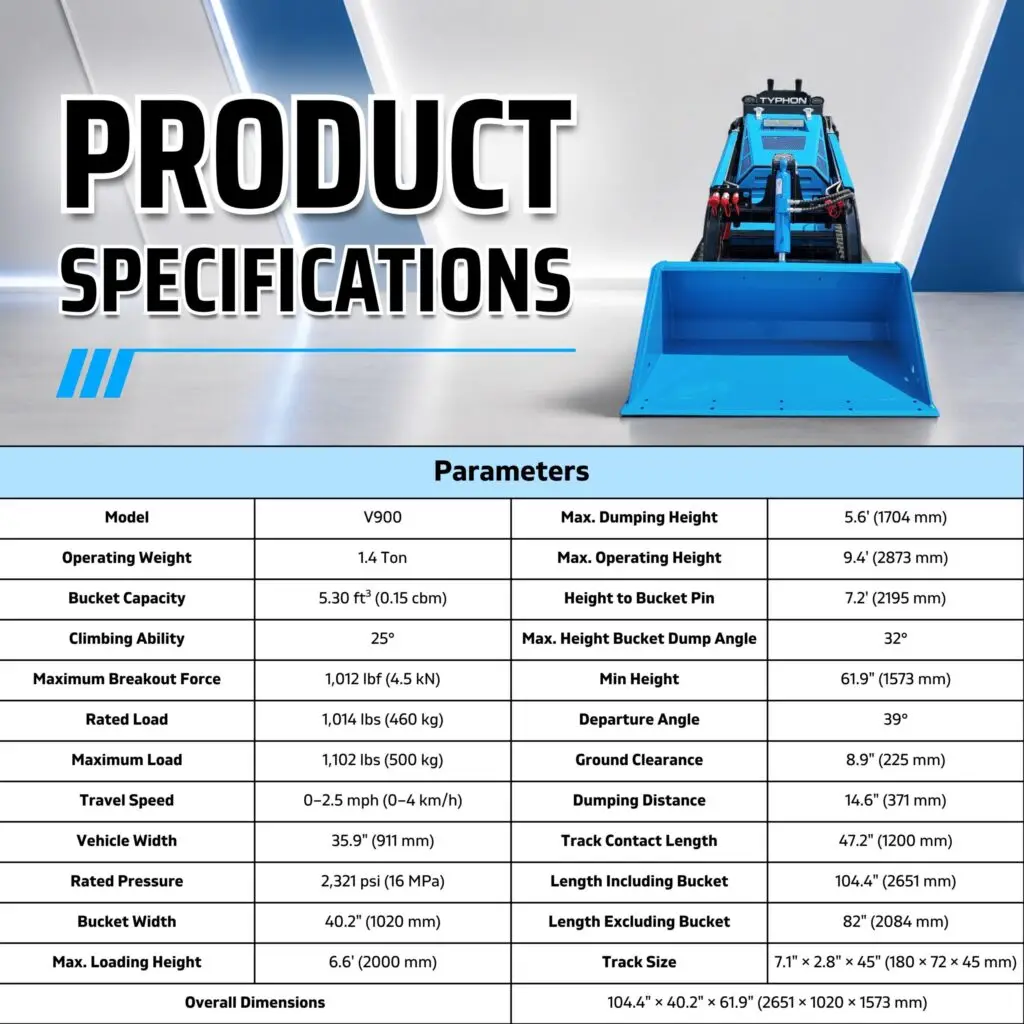

Key Specifications:
- Kubota D1105 25HP three-cylinder water-cooled diesel engine
- 1.4-ton operating weight
- 1,014 lb (460 kg) rated operating capacity
- 1,102 lb (500 kg) maximum load capacity

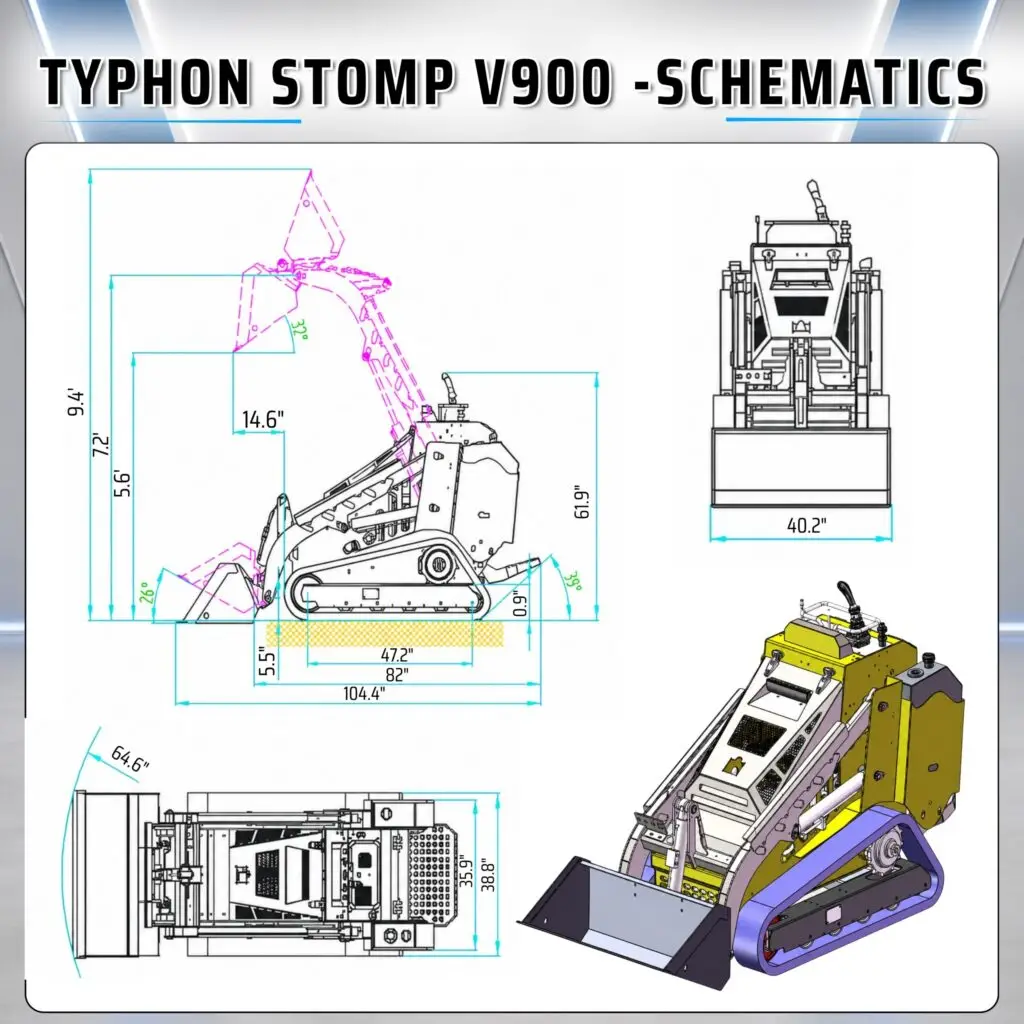

- 35.9 in (911 mm) overall width
- 48 L/min (12.7 GPM) hydraulic flow
- 16 MPa (2,321 PSI) rated hydraulic pressure
- 33 L (8.7 gal) fuel tank
- 9.4 ft (2,873 mm) maximum operating height
- 5.6 ft (1,704 mm) dumping height
- 3-pump / 3-valve hydraulic system
- Dual auxiliary hydraulic outputs
- Triangular track system
- EPA / EU Stage V compliant
